Description
1. Products Name:

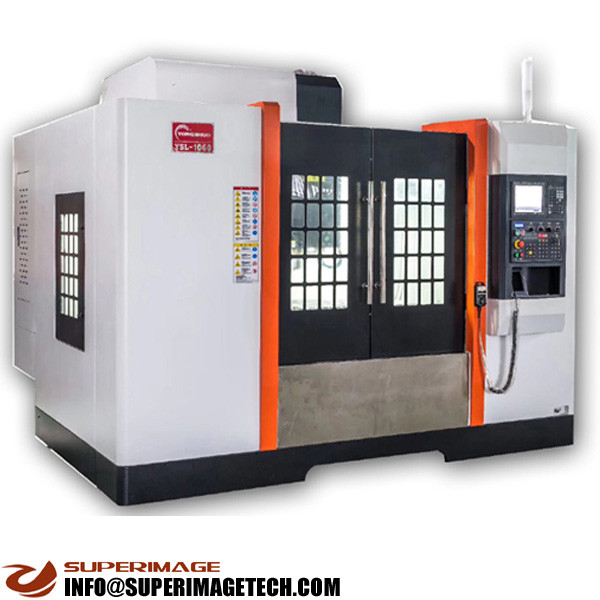

3-Axis/4-Axis/5-Axis 1060*600*600mm CNC Mill Machining Tool(Heavry+Line Rails)
2. Basic Technical Data:
|
Technical Data： |
Yongshuo YSL-1060 |
|
Bed Size： |
1300*600mm |
|
X-Axis Traveling Distance： |
1000mm |
|
Y-Axis Traveling Distance： |
600mm |
|
Z-Axis Traveling Distance： |
600mm |
|
XYZ Axis Model & Applying： |
XY-AXIS LINEAR RAIL Z-AXIS HEAVRY RAIL(HUGE MILLING & CUTTING FORCE) Besides being used for processing aluminum, flexible steel, copper, non-ferrous metal parts, alloy parts, plastic parts, gypsum parts, acrylic parts, dies, hand plates, etc. Specially used for processing steel materials, stainless steel materials,, non-embroidered steel & cemented carbide materials, high hardness metals and alloys. It is a multi-functional and multi-purpose CNC machine center. |
|
Spindle Motor Power： |
11.0KW |
|
Spindle Speed： |
0-8000 or 10000 rpm belt connect, or 12000 rpm direct connect |
|
Tool Changer(Tool Magazine)： |
24 Arm Type; BT40 |
|
Control System： |
FANUC,MITSUBISHI,SIEMENS,SYNTEC Four-axis function & five-axis function expansion interfaces by default intergrated and built-in in system. Upgrade easily, Plug & play |
|
Configurable Rotary Table: |
5-axis cradle rotary table,digital control 4-axis rotary table, disk tailstock rotary table,thimble tailstock rotary stable, or synchronous double-head rotary table,etc Φ125mm-Φ500mm |
|
Machine Weight: |
8300KG |
 |
 |
 |
3. Payment methods
By T/T in advance;
Down payment: 30% of total amount. Before delivery, 70% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers “3R” quality warranty for our CNC Mach-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
