Description
1. Products Name:

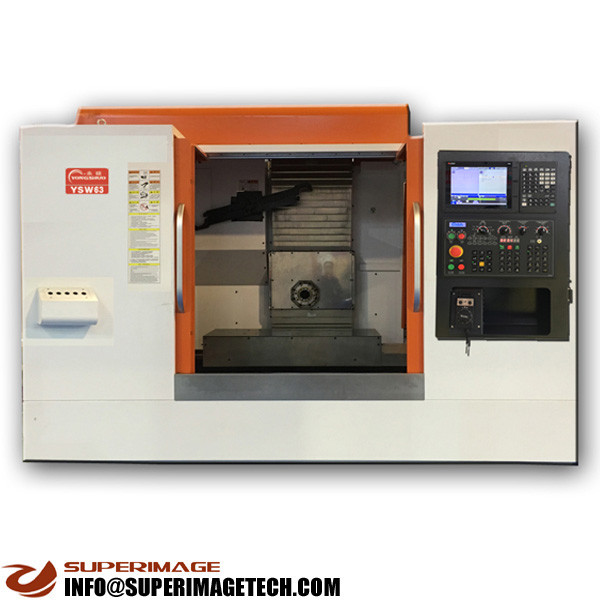

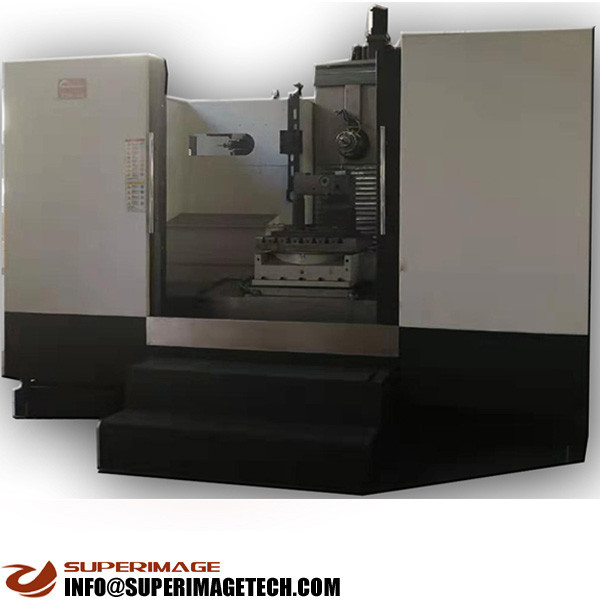

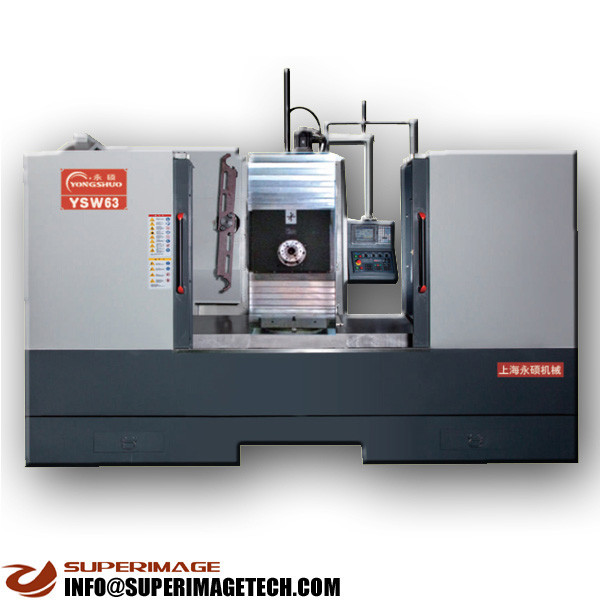

(5-Axis) 630*630mm Horizontal CNC Boring & Milling Machine/CNC Boring & Milling Machining Tool/Horizontal Boring Lathe
2. Basic Technical Data:
|
Technical Data： |
Yongshuo YSW-63 |
|
Bed Size： |
630*630mm |
|
X-Axis Traveling Distance： |
1000mm |
|
Y-Axis Traveling Distance： |
750mm |
|
Z-Axis Traveling Distance： |
600mm |
|
XYZ Axis Model & Applying Fields： |
XYZ-Axis Linear Rail or Rectangle RailParticularly used for processing frame, box, revolving body, polyhedron, shell, Polyhedron plane milling rocessing and drilling processing and other workpieces and models, one clamping, one completion. The main processing materials are aluminum, copper, non-ferrous metal, alloy, plastic, gypsum, acrylic, die, hand plate, etc. |
|
Spindle Motor Power： |
11.0KW |
|
Spindle Speed： |
6000rpm |
|
Working Rotary Angle: |
360*1 |
|
Tool Changer(Tool Magazine)： |
BT40/BT50, 24 or 30 or 50,or 60 Chain Type Interchangeable Tools System |
|
Control System： |
FANUC,MITSUBISHI,SIEMENS,SYNTEC Four-axis function & five-axis function expansion interfaces by default intergrated and built-in in system. Upgrade easily, Plug & play |
|
Machine Weight: |
9500KG |
 |
 |
 |
3. Payment methods
By T/T in advance;
Down payment: 30% of total amount. Before delivery, 70% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers “3R” quality warranty for our CNC Mach-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
