Description
1. Products Name:
Tunnel Conveyor Dryer
Tunnel Infrared Ray Dryer
Infrared Ray Tunnel Conveyor Dryer
400mm*900mm Infrared Ray Tunnel Coneyor Drying Machine
2. Basic Technical Data:
Max.Loading Weigth
Machine Size
1100*660*600mm
Drying Area
400*900mm
Conveyor Width
400mm
Max. Feeding Height
100mm (adjustable)
Drying Temperature
0-300 Celsuis Degrees

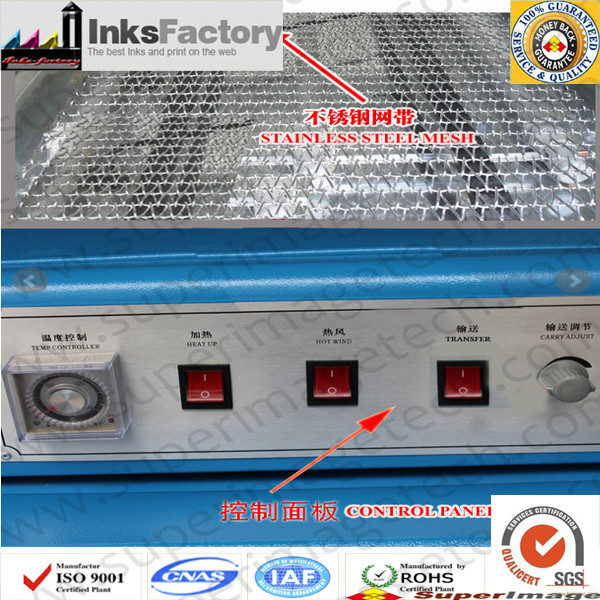

Conveyor Belt Materials
Teflon Material
Conveyor Running Speed
1-10m/min(adjustable)
Conveyor Motor Power
90w(Continuously viable)
Dry Heating Method
Infrared Ray Tubings
15kg
Machine Weight
60kg
Machine Packing Weight
100kg
Working Voltage
220V 50-60Hz/380V 50-60HZ
Rated Power
6000w
Main Function
This machine can be used in all kinds of overprint printing, especially the T-shirt screen printing. The bedplate is designed as a special desk for T-shirt, which is more convenient and more accurate for the screen printing t-shirt.The machine can also be used for garments, woven fabrics, pieces, bags, umbrellas, metal, paper, plastic, copybook, circuit, wood, glass, ceramic tiles and various planar screen printing products such as leather shrinkage deformation of large articles of multicolor overprint accuracy. The use of thermosetting ink, mucilage, and other materials printing.The front and back sides of the worktable can be moved, and the screen can be adjusted in front, left and right, rotating and fine-tuning, and the front end of the screen can be adjusted up and down. Orientation Chromatography is convenient and accurate. It can be widely used in silk screen printing of cloth, clothing, T-shirt and textile.
Main Applying
widely be
used for garments, woven fabrics, pieces, bags, umbrellas, metal,
paper, plastic, copybook, circuit, wood, glass, ceramic tiles and
various planar screen printing products such as leather shrinkage
deformation of large articles of multicolor overprint accuracy. The use
of thermosetting ink, mucilage, and other materials printing. It can be widely used in silk screen printing of cloth, clothing, T-shirt and textile.
Packing
1 set per wooden case.
Shelf Time
Permanent use
Main Characters
1. adopting new synchronous servo system, transmission speed and better stability.
2. the table automatically rotate each station positioning accuracy (± 0.05mm).
3. big dryer area.
4. even rotating speed.
5. easy to maintain, easy to operate.
6. the design of the whole machine is reasonable, simple and practical.
7. the whole machine adopts simple design, saving space, more convenient handling and migration;
8. adjustable temperature control exactly.
9. the machine adopts all metal structure, the body adopts advanced electrostatic spraying, the appearance is elegant, clean and convenient. The main installation parts are stainless steel materials.
10. Electronic continuously variable transmission, stable, reliable, long life and low noise.
11. Using the heating mode of quartz far infrared tube, the infrared radiation can be continuously produced when working, with the powerful wind cycle, the temperature of the heating room becomes more uniform and the electric energy is saved at the same time.
12.The transmission part adopts high-power DC motor, which can carry out stepless speed regulation and high load ratio.
13. It can work continuously for a long time and runs stably and reliably.
14. With special mechanical structure design, the appearance is more beautiful and luxurious, making maintenance easier and more convenient.
3. Payment methods
By T/T in advance;
By Western Union
By Paypal(Paypal Credit Card)
4. Delivery time:
By DHL/Fedex/TNT
Delivery time: 7-10 days.
By Normal Airfreight to Airport:
Delivery time: 10-15 days.
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers “3R” quality warranty for our Tunnel Conveyor Dryers Products-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
