Description
1. Products Name:

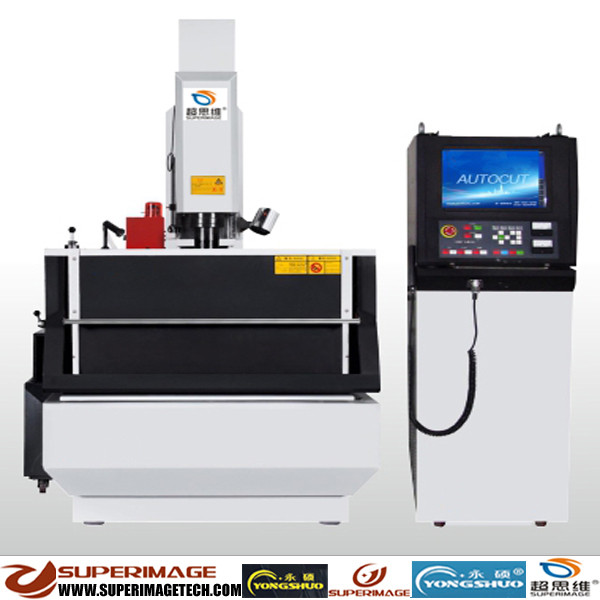

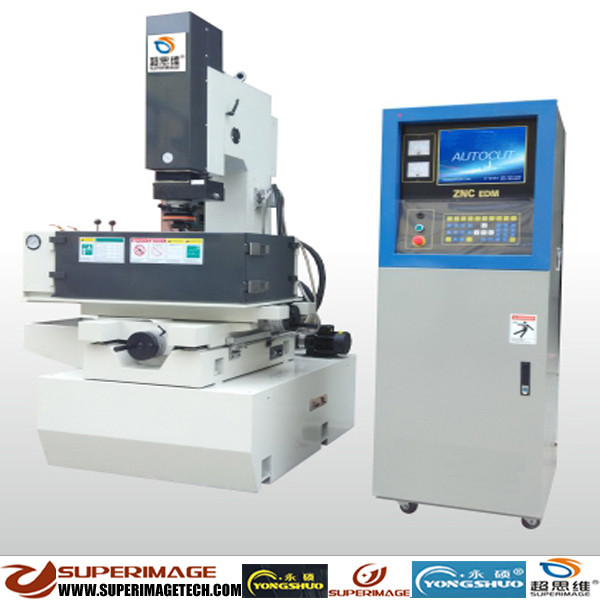

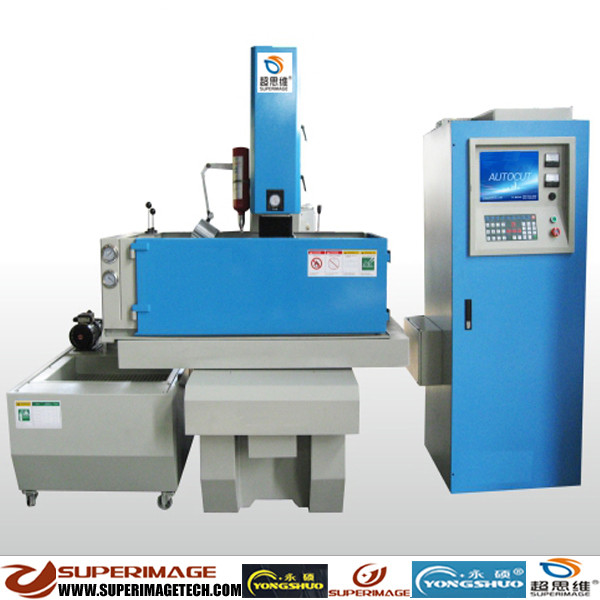

High-speed 900mm*500mm*400mm CNC Die-Sinking EDM
900mm*500mm*400mm CNC EDM Sinker
900mm*500mm*400mm CNC Electrical Spark Erosion EDM
900*500*400mm CNC Sinker EDM
900*500*400mm CNC EDM Die Sinking Machine
High-speed CNC EDM Forming Machine 900mm*500mm*400mm
High-speed CNC EDM Molding Machine 900mm*500mm*400mm
2. Basic Technical Data:
TECHNICAL DATA
EDM-YS350
CONTROL SYSTEM & AXIS QTY.
AUTOCUT, 4-AXIS
WORKING GROOVE INNER SIZE(L*W*D)
900*500*400MM
WORKTABLE SIZE
600*350MM
X-Y AXIS TRAVELING DISTANCE
350/250MM
SPINDLE(Z-AXIS) STROKE
160-180MM
SPINDLE(Z-AXIS) ASSISTING STROKE(2ND STROKE)
180-200MM
THE DISTANCE FROM ELECTRODE END TO WORKTABLE
70-450MM
MAX.LOADING WEIGHT OF WORKTABLE
800KG
MAX.ELECTRODE WEIGHT
120KG
MAX.WORKING CURRENT
50A
MAX.MACHINING SPEED
200MM2/HOUR
SURFACE ROUGHNESS
≤0.4UM
LOWEST ELECTRICAL CONSUMPTION RATE
≤0.2%
MAX. OIL LEVEL
300MM
FILTERING TANK CAPACITY
350LITERS
MACHINE SIZE
1630MM*1450MM*2300MM
MACHINE WEIGHT
1300KG
3. Payment methods
By T/T in advance;
Down payment: 50% of total amount. Before delivery, 50% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers “3R” quality warranty for our CNC EDM-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
