Description
1. Products Name:
PES Non-woven Lining Cloth
PES Hot Melt Lining Cloth Film
PES Hot Melt Adhesive Film
PES Hot Melt Adhesive Net Cloth Film
PA Non-woven Lining Cloth
PA Hot Melt Lining Cloth Film
PA Hot Melt Adhesive Film
PA Hot Melt Adhesive Net Cloth Film
TPU Non-woven Lining Cloth
TPU Hot Melt Lining Cloth Film
TPU Hot Melt Adhesive Film
TPU Hot Melt Adhesive Net Cloth Film
2. Basic Technical Data:
Transfer Pressure
H & M, Uniqlo, Zora, Aokaila,Jingdehzen, Wel,Yaoguang,etc,
Classification by appearance: it can be divided into mesh film, film-like film, mesh / adhesive film cutting strip, and can also be divided into strip type paper film and strip type paper film. Generally speaking, the adhesive film contains more glue than the omentum, so it fits more firmly. However, the permeability of the adhesive film is worse than the omentum, the hand feel is slightly stiff, and the cost is higher. The process of the hot-melt film of the paper with and without release is different. Customers can choose according to their own actual needs. Compared with the film of the paper without release, the cost of the hot-melt film of the paper with and without release is higher.
Classification by ingredients: PA, PES, TPU, EVA, Po and other ingredients. The hot-melt adhesive film with different ingredients should be made of different materials.
PA: polyamide, also known as nylon, has good washing and dry cleaning properties. It is mainly produced into hot-melt mesh film, which is widely used in textile, leather, sponge and foam of various materials.
PES: polyester, with good washability, can be used to produce adhesive film and mesh film, but it has no elasticity. It is white and foggy. It has good viscosity for textiles, films, sponges and metals. However, in the application of bonding between mesh film and textiles, it is recommended to choose PA component more.
EVA: vinyl acetate copolymer, with general washing performance, but with elasticity. When it is not used, it is foggy surface, and becomes transparent after use. It has good foaming viscosity for some rubber, polypropylene fiber and sponge, and has great limitations in the application of fabric bonding. But in other applications, such as wall cloth and rubber shoes, there is a certain market, with low use temperature and low cost.
TPU: polyurethane, with good elasticity and washability, is mainly made into rubber film, which is widely used in the field of shoes and clothing. It can be divided into different use temperatures, such as low temperature without elasticity, medium temperature with elasticity, high temperature and elasticity, etc. it has good viscosity for textiles, leather, film, sponge, and is also a very popular variety in rubber film.
Substrate Materails
PES/PA/TPU
Specification Model

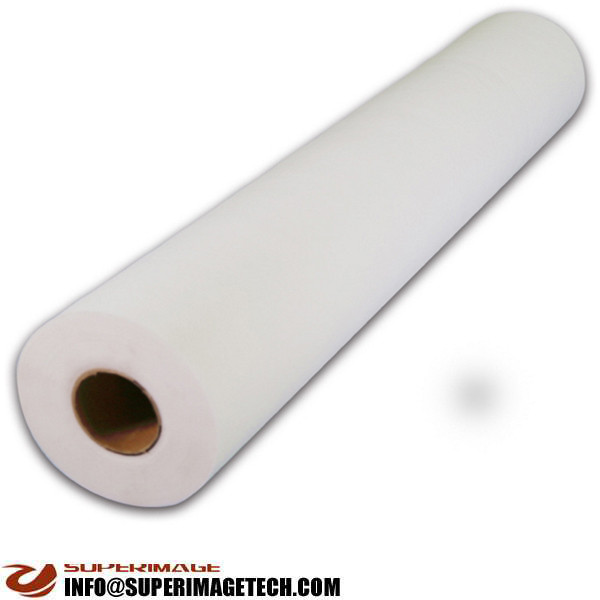

1500mm(width)*300m per Roll
or Customize from 5mm-3260mm width
Release Paper
No, or yes for option
Melt Point
105-120 Celsuis Degrees
Gsm
15-80g sq.meter for option
Heat Press Temperature
125-150 Celsuis Degrees
Heat Press Pressure
1.5-2.5kgf/sq.meter
Thickness
70u,75u,100u,or customize
Heat Transfer Time
10-15 seconds
20-30pounds
Customized GSM
8-120g sq.meter
Using Method
1. According to their own needs, the whole product will fit or cut to a specific shape to fit.

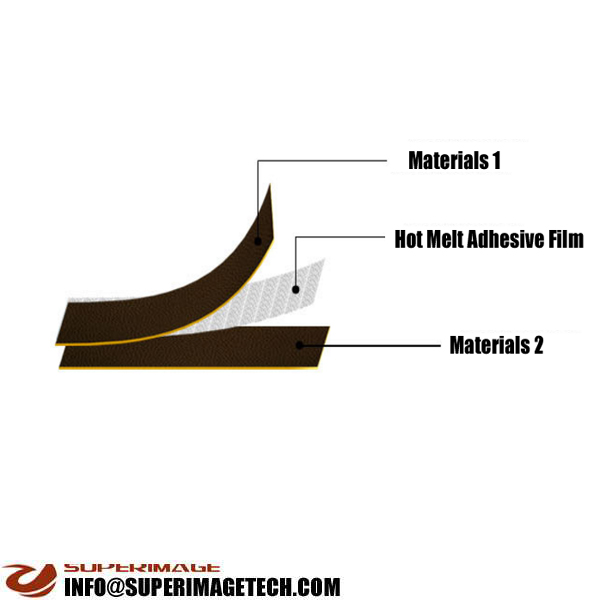

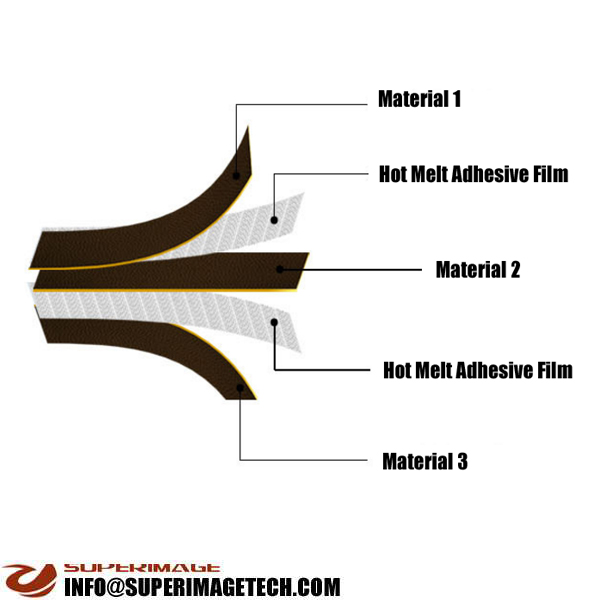

2. Place the hot-melt mesh in the middle of the two layers of materials in the order of material 1 / hot-melt mesh / material 2.
3. Use an iron or professional pressing equipment to heat one side of material 1 or material 2 (select the side convenient for heating), place it under normal temperature, and test the fastness after it cools naturally.
Due to the different material thickness of different materials, the thermal insulation performance is slightly different. The working temperature, pressure and time during pressing should be concluded in practice. The working parameters in the technical table are only for reference.
Cooperation Partners
Main Applying
Textile fabric: it has good adhesion to textile and air permeability.
Foam sponge: it can be used for all kinds of foam sponge with good air permeability.
Film: good adhesion to some components of the film.
Clothing: it can be used for bonding between fabrics and has good air permeability.
Water treatment: good adhesion to some films, permeable.
Clothing accessories accessories: can be used for lining, decals, etc., for clothing manufacturing and processing.
Packing
1 roll per box, 30boxes per pallet
Shelf Time
36months
Main Characters
Environmental protection and safety: it is widely used in underwear and other close fitting clothing. The rubber material is colorless and tasteless, which conforms to ROHS certification standard.
Widely used: can be used in automobile, clothing, home textile, industry and other fields to meet all kinds of design needs.

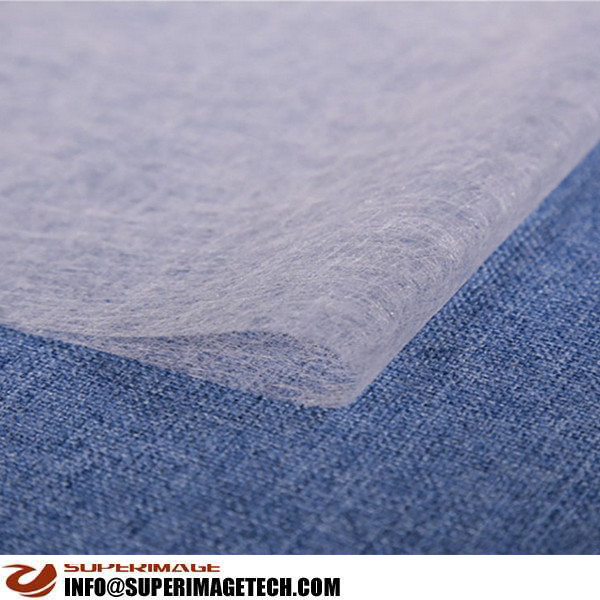

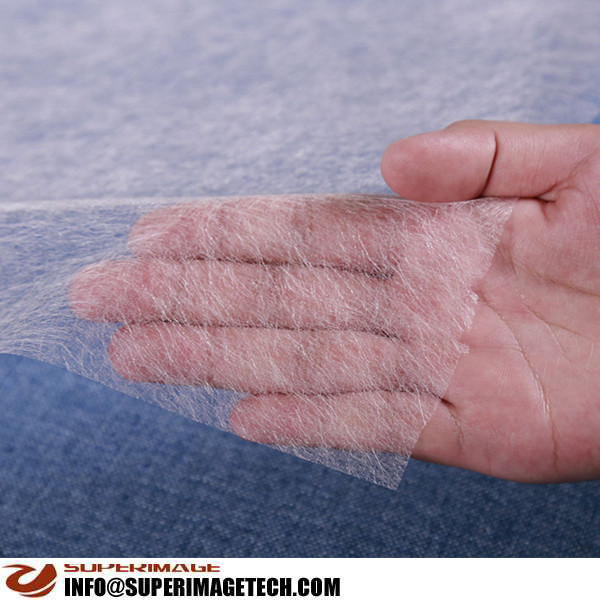

Air permeability and softness: This product is of spider silk structure, which has little influence on the hand feel after fitting, and retains the air permeability of the material. It is called "breathable non-woven lining".
Easy to use: hot melt adhesive mesh is not sticky at room temperature. It can be purchased separately and operated by iron or fitting equipment.
3. Payment methods
By T/T in advance;
By Western Union
By Paypal(Paypal Credit Card)
4. Delivery time:
By DHL/Fedex/TNT
Delivery time: 7-10 days.
By Normal Airfreight to Airport:
Delivery time: 10-15 days.
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers “3R” quality warranty for our PES/PA/TPU/EVA Hot Melt Adhesive Films Products-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
