1. Products Name:

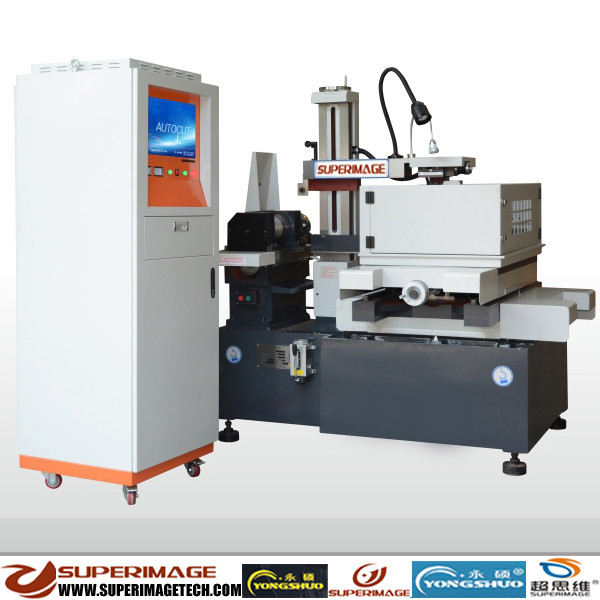

SUPERIMAGE MZS43 5-AXIS CNC WIRE CUT MACHINE
(5-Axis) XYZ UV STROKE SIZE:400*300*300 CNC Wire Cut Discharge Machine
(5-Axis) XYZ UV CNC Wire Cut EMD XYZ STROKE SIZE:400*300*300
(5-Axis) XYZ CNC WEDM XYZ STROKE SIZE:400*300*300
(5-Axis) U/V Axis Stroke Size 100mm*100mm
2. Basic Technical Data:
ITEM
UNIT
DESCRIPTION
WEDM Guide Rail
-
Precision LM Guide
REMOTE
-
CNC REMOTE
DIGITAL DISPLAY
-
With motorised
Control System
-
AUTOCUT
CNC CONTROLLER
Control Axis Qty.
-
5-axis
Work Table Size
mm
660*580
Max. Loading Weight
Kg
500KG
XY Stroke Size
mm
400*300
UV Stroke Size
mm
100*100
Wire diameter range
mm
300
Max. work piece size
Mm
780*600*300mm
Max. taper angle(°)/ Thickness(mm)
-
0.10~0.3mm
Water tank capacity
Liter
270
Machine Weight
Kg
2500
Controller
-
64-bit Dual IPC (CPU+DSP)
Storage Unit
-
SSD 64GB / RAM 4G
LCD Display
-
15” LCD Touch Screen
Input system
-
Keyboard, NET, RS-232 TouchScreen
Lon Exchanger
Liter
5
Water quality control
-
Automatic
Maximum Travel Speed
mm/min
1000.0
Maximum Wire Tension
Kg
0.5-2.4
Fastest Take-up Speed
mm/sec
220mm/sec
The Height of the Workbench from the Ground
mm
950~1000
Maximum Power Consumption
KVA
18
Max.Procesing Current
A
15
Min.Input Unit
um
1
Graphic Amplification Function
-
0.001-1000 Times
Number of Coordinates
-
10
Machine Size
Cm
286.0 x 223.0 x 209 cm
Machine Weight
kg
2500kg
Packing Size
mm
WEDM: 3000*2400*2400
Cabinet: 600*800*1800
Packing Weight
kg
WEDM: 2500kg
Cabinet: 100kg
Main Functions
Graphic coordinate transformation, zooming, rotation, graphic tracking display, linear arc interpolation, taper processing, up and down different surface processing, broken wire, short circuit processing, power failure memory, automatic stop after processing, automatic end face, automatic center, reverse processing, menu technology and automatic programming, multiple cutting functions, etc
