Description
1. Products Name:

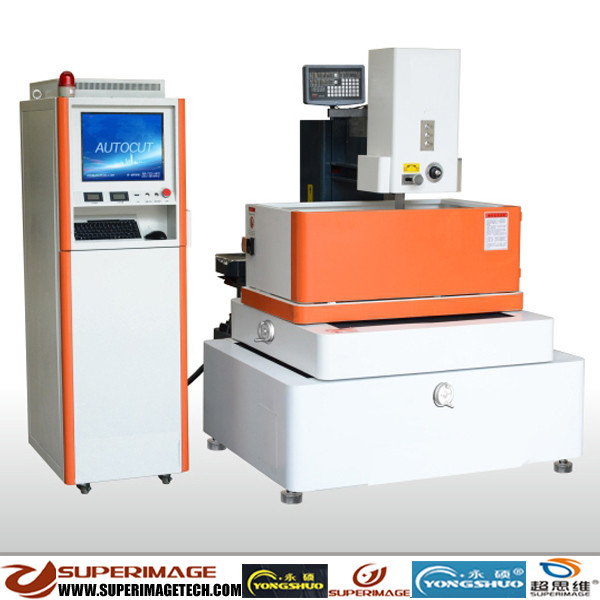

(4-Axis) 500mm*630mm CNC Wire Cut Discharge Machine
(4-Axis) CNC Wire Cut EMD 500mm*630mm
(4-Axis) CNC WEDM 500mm*630mm
2. Basic Technical Data:
XY AXIS TRAVELING DISTANCE
500*630MM
WORKTABLE SIZE
680*960MM
MAX.LOADING WEIGHT OF WORKTABLE
850KG
Z AXIS STROKE(SPINDLE STROKE)
300MM
MOTOR DRIVING MODE
AC SERVO OR STEPPING DRIVE
MACHINING SURFACE ROUGHNESS
Ra≤0.7UM OR Ra≤0.8UM
MAX. CUTTING THICKNESS
320MM
MAX.CUTTING SLOPE/WORKPIECE THICKNESS
＋30/80MM
MAX.CUTTING SPEED
≥12000MM2/HOUR
MULTI-CUTTER CUTTING PRECISION
＋0.25(＋0.4)UM
AVERAGE CUTTING SPEED OF THREE-CUTTER
≥5000MM2/HOUR
SCREWS RUNNING SPEED
FREQUENCY CONTROL RUNNING
DIAMETER OF ELECTRODE WIRE
Φ0.1-0.25MM
MACHINE RUNNGING POWER
2.3KW(OR 2KW)
MACHINE SIZE
2000MM*1350MM*2200MM
MACHINE WEIGHT
2300KG
HARDWARE CONFIGURATION & INTERFACE
SCHNEIDER ELECTRIC,USB,LAN/RS232
OPERATION PANEL & LANGUAGE
ENGLISH,JAPAN,RUSSIA,ETC
3. Payment methods
By T/T in advance;
Down payment: 50% of total amount. Before delivery, 50% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers “3R” quality warranty for our CNC WEDM-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
