Description
1. Products Name:
(4-Axis) 1400mm*900mm Cnc Wire Cut Electric Discharge Machine With Auto Threading System
(4-Axis) Advance High-speed CNC Wire Cut EMD 1250mm*750mm
(4-Axis) Advance High-speed CNC WEDM 1250mm*750mm
(4-Axis) Auto Threading CNC Wire Cut Electric Dischage Machine
2. Basic Technical Data:
Specification Model
AT-1490
X-Y Axis Travel
X/Y travel:1250 mmx750 mm
Z Axis Travel
500mm
Stable Size
1400mmx900mm
Max.work piece weight:
3000KG
Max. Workpiece Size
1400mmx900mm*500mm
Electrode wire diameter:
φ0.25-0.30 mm
Electrode wire material:
Diffusion annealed brass wire
Machinable Wire Diameter
0.15 - 0.3mm

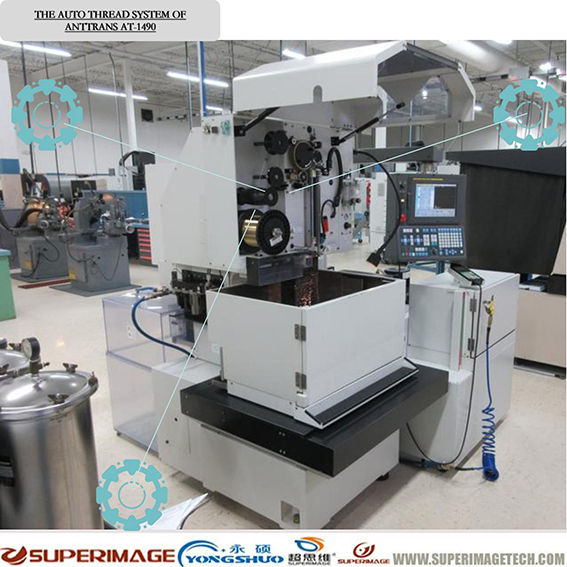

Auto wire threading
Available
Max cutting thickness:
500mm
Max.cutting taper:
±6/100 mm
Max cutting speed:
200 mm²/min
Power Supply:
50Hz/380V±10%
Motor:Servo Motor
2.5 KW with torque 10 Nm
Working fluid:
Deionized water with conductivity
Adequate filtration &flushing for tall parts
Available
Full version of compatible software and copyrighted operating system preinstalled.
Available, AutoCut
Software installation compact disk (CD/DVD)
be provided separately along with password,installation and operation guide.
Machine Weight:
4000kg
Covering Size:
2000*2000*2200mm
X Axis Ball Screw
Japan THK
Y Axis Ball Screw
Japan THK
Z Axis Ball Screw
Japan THK
X Axis Linear Guide
Japan THK
Y Axis Linear Guide
Japan THK
Z Axis Linear Guide
Japan THK
X Axis Linear Motor
Linear Drive
Y Axis Linear Motor
Linear Drive
Z Axis AC Servo Motor
400W Japan Panasonic
3. Payment methods
By T/T in advance;
Down payment: 50% of total amount. Before delivery, 50% balance need to be paid.
By L/C 100% at sight
4. Delivery time:
By Sea
By Air
By Road
Delivery time: 8-12 Weeks after gettting payments.
5. Quality Warranty:
SuperImage offers “3R” quality warranty for our CNC WEDM-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
