1. Products Name:

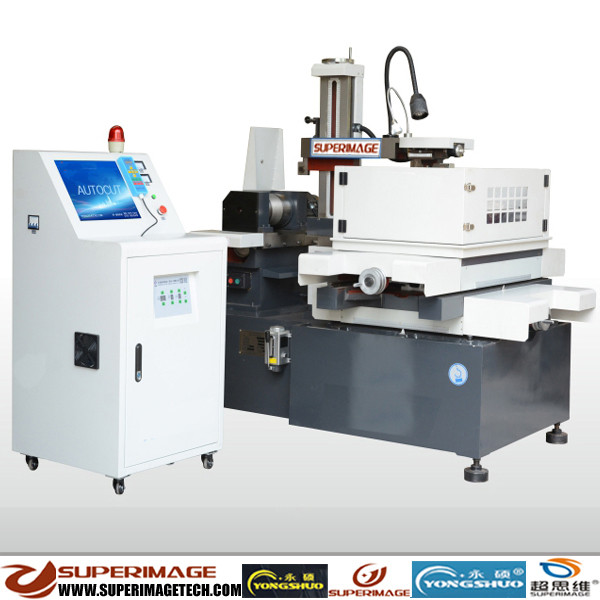

DK7740SF CNC WIRE CUT MACHINE
(4-Axis) XYZ STROKE SIZE:400*500*300 CNC Wire Cut Discharge Machine
(4-Axis) CNC Wire Cut EMD XYZ STROKE SIZE:400*500*300
(4-Axis) CNC WEDM XYZ STROKE SIZE:400*500*300
2. Basic Technical Data:
|
ITEM |
UNIT |
DESCRIPTION |
|
WEDM Guide Rail |
- |
Precision LM Guide |
|
REMOTE |
- |
CNC REMOTE |
|
DIGITAL DISPLAY |
- |
With motorised |
|
Control System |
- |
K-Cut or AutoCut Operating System: Win7/Win10 Graph display simulation |
|
Machining Axis Qty. |
- |
4-axis Machining |
|
Work Table Size |
mm |
510*790 |
|
Max. Loading Weight |
Kg |
600KG |
|
XY Stroke Size |
mm |
400*500 |
|
Z-axis Stroke Size |
mm |
300 |
|
Max.Cutting Thickness |
mm |
300 |
|
Max. Taper Angles |
- |
+-60 |
|
Max.Cutting Slope/Thickness |
0/mm |
+-60/80 |
|
Max.Cutting Speed |
mm2/h |
12000 （200mm2/min) |
|
Machining Precision |
mm |
Cut accuracy: ≤±0.005mm Straight cutting, ≤±0.012mm |
|
Surface Finish |
um |
Ra≤0.8-2.5μm (multiple and single path cutting) |
|
Max.Processing Current |
A |
8 |
|
Diameter of electrode wire |
mm |
Ф0.18 |
|
Wire Diameter |
mm |
Ф0.10~Ф0.22 |
|
Filtration |
mm |
Changeable filter (0.005mm) |
|
Working Liquid Type |
- |
Water based solution Saponification solution |
|
Working Liquid Tank Capacity |
liter |
120 |
|
Working Power |
- |
380-440V AC, 50Hz |
|
WEDM Consumption Power |
kva |
2.0 |
|
Wire Shelf |
- |
Adjustable |
|
Wire Control |
- |
Frequency converter speed regulation |
|
Input Mode |
- |
Keyboard, U-disk, Network,etc |
|
Digital Display |
- |
21.5”LCD Display With motorised, |
|
Power Supply & Control System |
- |
Vertical Control Cabinet |
|
Minimum Feeding |
mm |
0.001 mm |
|
Programmee Code |
- |
ISO Code; 3B Language; AUTOCAD/CAM; DXF format file; |
|
Pulse Width (14 Grades Adjustable) (μs) |
μs |
5-120 |
|
Adjustable Pulse Interval |
μs |
4-15 |
|
Machine Size |
mm |
1700MM*1280MM*2100MM |
|
Machine Weight |
kg |
2600kg |
|
Packing Size |
mm |
WEDM: 1800*1500*2400 Cabinet: 800*800*1000 |
|
Packing Weight |
kg |
WEDM: 2600kg Cabinet: 100kg |
|
Main Functions |
Graphic coordinate transformation, zooming, rotation, graphic tracking display, linear arc interpolation, taper processing, up and down different surface processing, broken wire, short circuit processing, power failure memory, automatic stop after processing, automatic end face, automatic center, reverse processing, menu technology and automatic programming, multiple cutting functions, etc |
|
