  5. Matt Cool Peel Screen Printing Film Back
  • Matt Cool Peel Screen Printing Film Back Release
  • Matt Cool Peel Screen Printing Film Back Release
  • Matt Cool Peel Screen Printing Film Back Release
  • Matt Cool Peel Screen Printing Film Back Release
Matt Cool Peel Screen Printing Film Back Release Matt Cool Peel Screen Printing Film Back Release Matt Cool Peel Screen Printing Film Back Release Matt Cool Peel Screen Printing Film Back Release

Matt Cool Peel Screen Printing Film Back Release

  • Product Item:SICT-NP-PF1009#
  • Substrate Materials: PET
  • Wide size:50*70cm, 100*70cm, 64*48cm, 39*54cm
  • Thickness:70u,75u,100u
  • Price: 0.35-0.40USD per sq.meter as per different quantity & Spec.
  • release film  , heat transfer release film  , screen print release film  , cool peel transfer film back release  , matt cool peel release film
    Inquiry Send Email PDF

    Description

    1. Products Name:

    Matt Cool Peel Release Transfer Film
    Matt Cool Peel Heat Transefr Film Back Release

    Heat Transfer Release Film Matte Cool Peel

    Screen Print Transfer Release Film Cool Peel

    Screen Printing Heat Transfer Film Back Release Cool Peel

    2. Basic Technical Data:

    Substrate Materails Matt Cool Heat Transfer Release Film
    Specification Model
    50cm*70cm/sheet
    100cm*70cm/sheet
    64*48cm/sheet

    39*54cm/sheet

    Or customize

    Suitable Print
    Screen printing, gravue printing, flexographic printing,offset printing,etc
    Sublimation Rate
    99%
    Film Type
    PET back release,cool peel
    Format
    In Sheets
    Transfer Temperature
    130-150celsuis Degrees
    Thickness
    70u,75u,100u,or customize
    Transfer Time
    6-15 seconds

    Transfer Pressure

    20-30pounds
    Colors for Option
    Transparent, Matte or glossy
    Using Method Print, plus heat press, plus cool peel
    Main Function

    As to our matte and cool peel release film, the heat transfer temperature between 130-150 ° C, the heat transfer effect completely, and no residual color. Is the commonly usedheat transfer film substrate on the heat transfer market at present. Because of the back coating the adhering layer, Can prevent the adhesion failure of products from long distance transportation and pressure. And isolation of paper and transportation costs can be saved. Through multi-channel applicator precision processing and become, quickly absorb ink layer, high surface smoothness, can reach 175-210 line network printing, no matter fine patterns or colors printing can achieve the ideal effect.

    Cooperation Partners

    H & M, Uniqlo, Zora, Aokaila,Jingdehzen, Yaoguang,etc,

    Main Applying
    A. Apply to printing: Only suitable for the matte and cool peel of screen printing products.
    B. Applicable heat transfer materials: Cotton, chemical fiber, cotton blended fabric, EVA, non-woven fabrics, leather and other heat resistant fabric
    C. Transfer temperature: 130° C-150° C, Trnsfer time: 6-15s Press: 20-30 pounds
    D. Peeling method: Cold peeling.
    E. Products need to be stored in a temperature: 0 ° C to 35 ° C, relative humidity: 30% - 30% of the environment to avoid light preservation. Products for a period of 36 months (the original packaging and unopened), more than warranty please use after test.

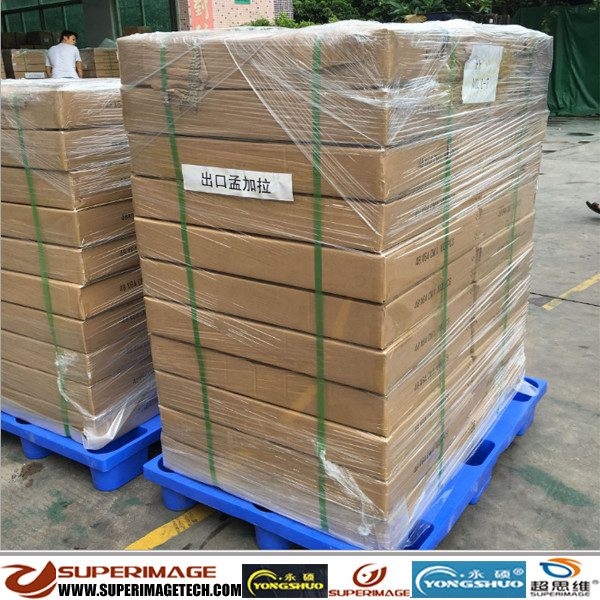

    Packing
    1 roll per box, 100boxes per pallet
    Shelf Time
    36months
    Main Characters
    1). High sublimation conversion rate;
    2). Speed the dry velocity of printing;
    3). Improve the ability to resist warping
    4). Reducing paper spots Phenomenon
    5). Decrease color cast.
    6). High stability and No Color distortion.
    7). Stable color fastness
    8). Fine strength paper, which breaking, fragilizing, coking and shrinking.
    9). Consistent quality & reputation.
    10).Keep the accuracy of the pattern;
    11).There is no wrinkle and curl in large inkjet printing and full bottom printing;
    12).Uniform coating, quick ink absorption, quick drying, small deformation of paper;
    13).The transfer of color release quantity, transfer rate is significantly higher than the market similar products, transfer rate of about 95%;
    14).Uniform paper, quality stability;
    15).After printing, the storage period is long, the color is bright, the details are intact, and the color reduction is high.






    3. Payment methods

    By T/T in advance;

    By Western Union

    By Paypal(Paypal Credit Card)

    4. Delivery time:

    By DHL/Fedex/TNT
    Delivery time: 7-10 days.

    By Normal Airfreight to Airport:

    Delivery time: 10-15 days.

    By Sea

    Delivery time: about 25-30 days.

    5. Quality Warranty:

    SuperImage offers “3R” quality warranty for our Sublimation(Heat Transfer) Products-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
