Description
1. Products Name:

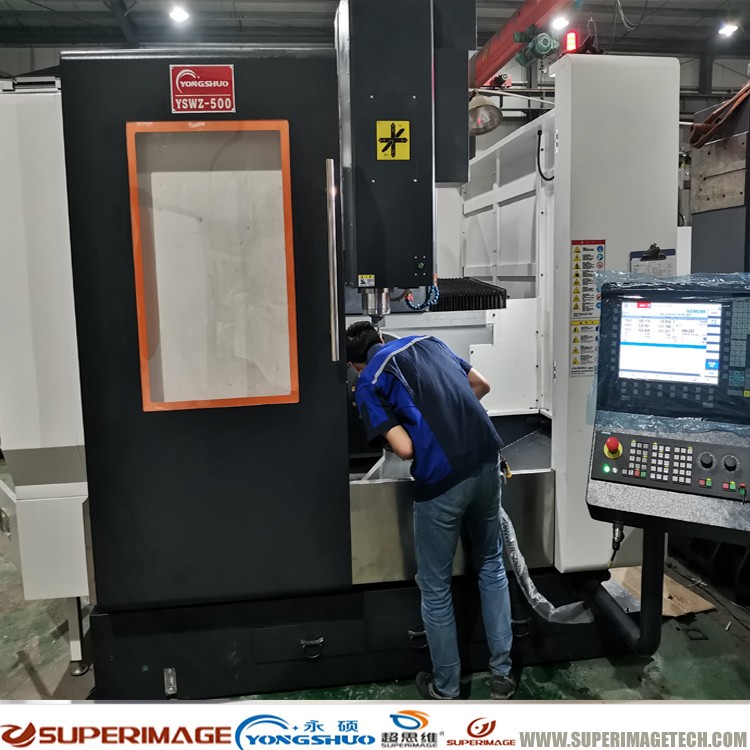

Veritcal CNC Milling Machining Tool With Horizontal 5-axis Rotary Table
Horizontal 5-axis CNC Milling Machine Center
DMU65 CNC Milling Machine Center
2. Basic Technical Data:
Item
Description
CNC Control System
SIMENS 840D 5axis
YSWZ-650
X-axis Valid Processing Distance
820mm
Left Traveling Distance
500mm
Right Traveling Distance
320mm
Y-axis Valid Processing Distance
520mm
Z-axis Valid Processing Distance
460mm
Worktable to Spindle Nose(MM)
220-680
Valid working size
650*650mm
Max.loading Weight
600kg
Workbench Surface Process
Super-hard anti-scratch & wear resistance quenching process
Groove Width/Spacing(MM)
5-18*100
Spindle RPM
10000-12000rpm
Spindle Speed
Variable Speed Adjust(Stepless)
Spindle Taper
SK40/BT40
Spindle Connect Mode
Direct Connect Digital drives
Spindle Cooling Mode
Spindle Surround Cooling & Center Cooling (Coolant Through Spindle)
Moving Speed(X/Y m/min)
360000
Moving Speed(Z m/min)
360000
Cutting Speed(X/Y m/min)
10000
XYZ Ball Screws Specification
4512
X Linear Rails Specification
MSA45LA
YZ Linear Rails Specification
MSA45LA
Spindle Motor
11kw
Feeding Motors
3KW
Taper Model
MAS BT40/SK40
Tool Qty.(Auto Tool Changer)
24
Rotation (C-axis)
360o
Swivel Range(A(B)-axis)
-50 to +1100
Power Supply Input
3-phase, 380v,50Hz
Air Pressure
6-Bar
Size
2700*2350*2470mm
Weight
10,000KG
3. Payment methods
By T/T in advance;
Down payment: 30% of total amount. Before delivery, 70% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers “3R” quality warranty for our CNC Mach-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
