Description
1. Products Name:

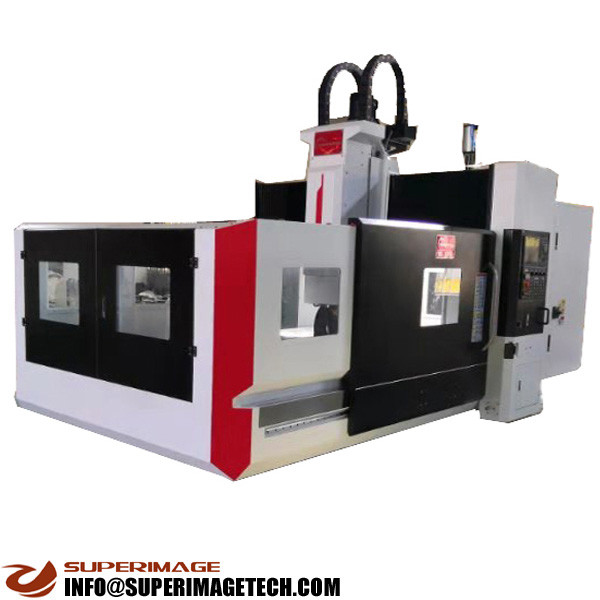

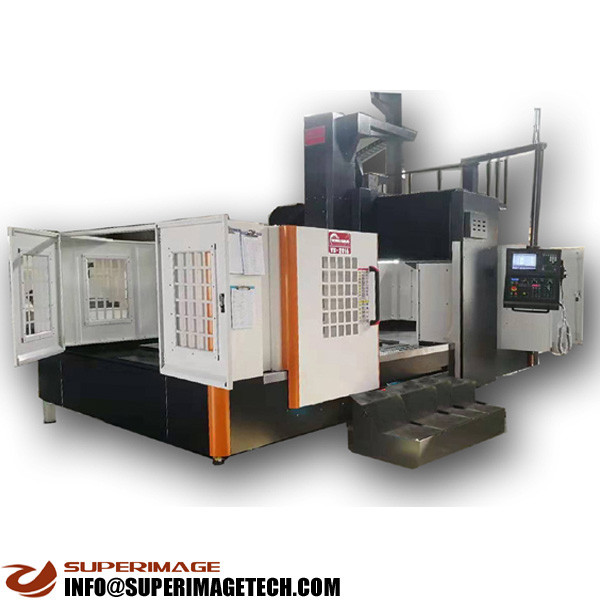

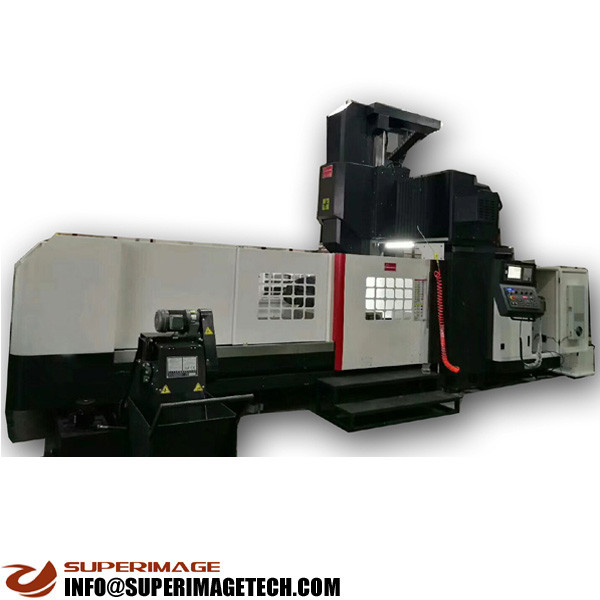

3-Axis/4-Axis/5-Axis 3000*2300mm Vertical Gantry CNC Milling Machining Center/CNC Gantry Miller
2. Basic Technical Data:
|
Technical Data： |
Yongshuo YS-3026 |
|
Bed Size： |
3000*2300mm |
|
X-Axis Traveling Distance： |
3000mm |
|
Y-Axis Traveling Distance： |
2600mm(2800mm) |
|
Z-Axis Traveling Distance： |
1000mm(1250mm) |
|
XYZ Axis Model & Applying Fields： |
XY-axis Linear Rails (Roller) or Heavy RailsZ-axis Rectangular rail or Heavy railParticularly used for processing large-scale aluminum, copper, flexible steel,non-ferrous metal, plastic, gypsum, acrylic parts, dies, hand plates, etc.Also specially used for processing steel parts, stainless steel,non-embroidered steel parts and cemented carbide parts. Especially for processing large- scale frame, shell, vehicle model, vehicle frame, box, hub workpiece, cylinder, disc, model and so on. It is a multi- functional and multi-purpose large-scale gantry processing center. |
|
Spindle Motor Power： |
18.5KW/22KW |
|
Spindle Speed： |
6000rpm |
|
Tool Changer(Tool Magazine)： |
BT40/BT50, 24 or 30 or 50,or 60 Chain Type Interchangeable Tools System, or 24 Tools, Arm Type, or 24 Tools, Disk(Carousel) Type |
|
Control System： |
FANUC,MITSUBISHI,SIEMENS,SYNTEC Four-axis function & five-axis function expansion interfaces by default intergrated and built-in in system. Upgrade easily, Plug & play |
|
Machine Weight: |
36000KG |
 |
 |
 |
3. Payment methods
By T/T in advance;
Down payment: 30% of total amount. Before delivery, 70% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers “3R” quality warranty for our CNC Mach-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
